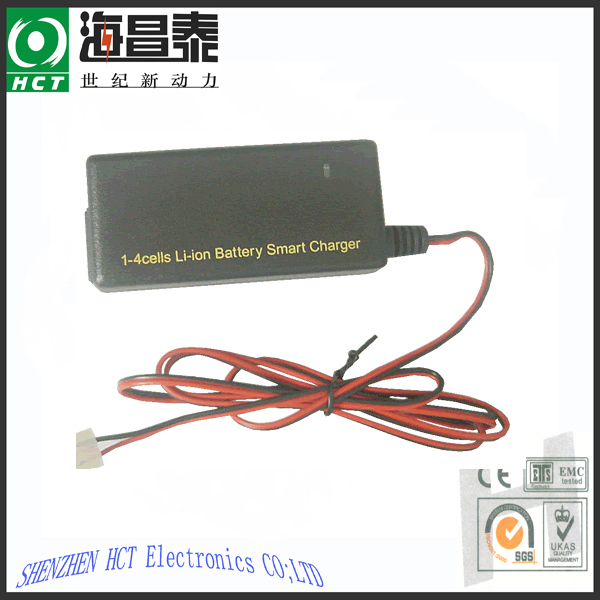

- It is very smart charger which can auto-switching output.
- It can charge any 1~4cells Li-Ion battery pack or Li-Polymer battery pack which capacity is more than 500mAh.
- The charger will cut off automatically if battery is fully charged.
- MCU control the whole charge process and guarantee the battery pack get fully charge,avoid the battery pack over-charge.
- Led indicate the charge status,red and green led flash for 2 times after plug-in ,then both off, red led on in charging,green led on after fully charge.red led flash in error statu or short battery pack.
- Dimension:96.0X44.0X28.0mm. |
| Specification: | - Input:AC 100 -240V 50-60Hz
- Output:auto-switching output at 4.2V,8.4V,12.6V,16.8V according to the battery pack
- Charging current:500~1000mA | | Protection: | - Over voltage protection.
- Short circuit protection.
- Battery pack reverse connect protection. | | Warning: | - Charge 3.6V,7.2V,10.8V,14.4V Li-ion battery pack which capacity is more than 500mAh.
- The battery pack be charged muct have PCM..
- Don't remove the cover avoid electric shock.
- Dry location use only.
- Indoor use only. |
|
